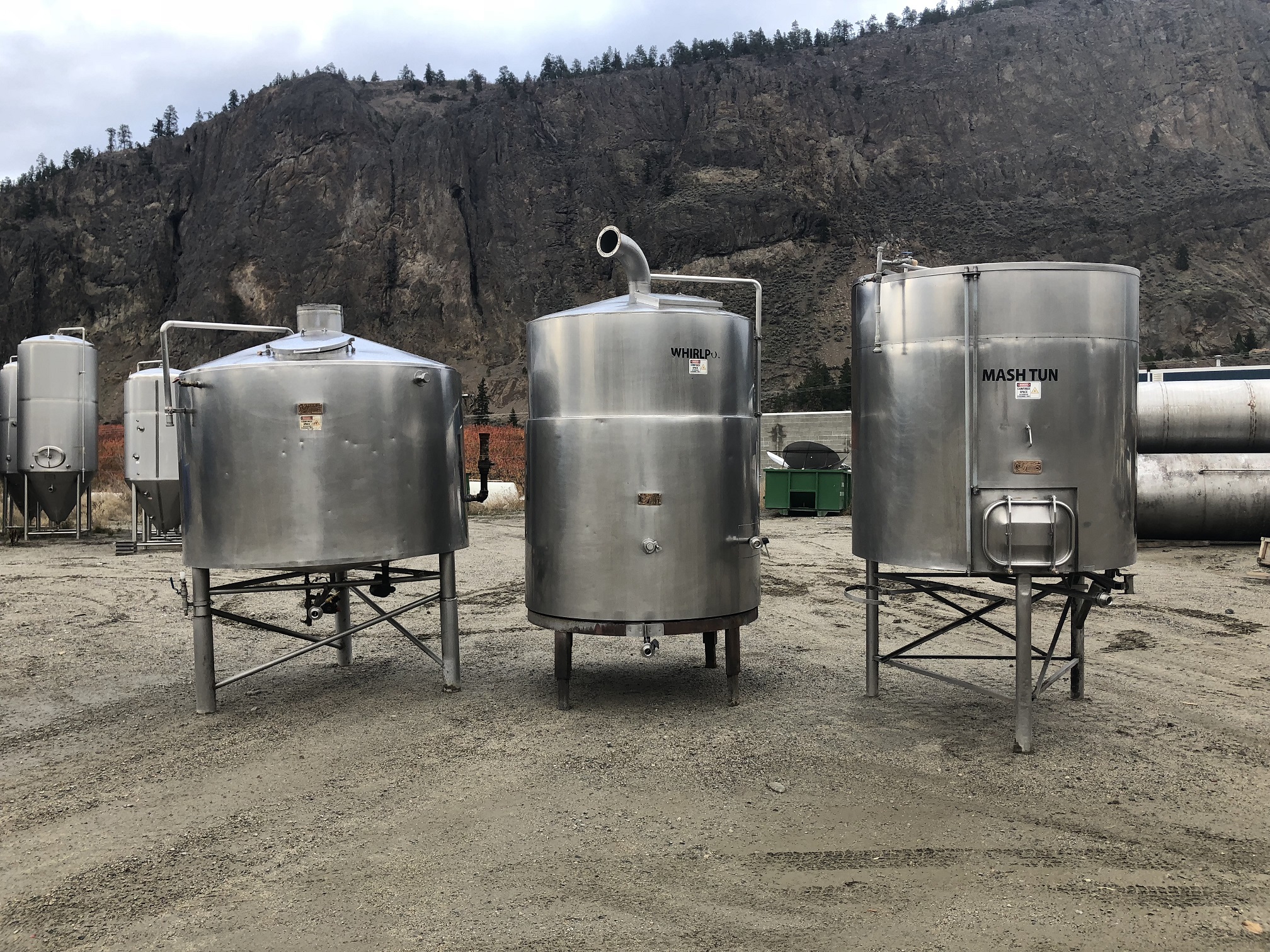

112, 111,113
1 Whirlpool (Spec Mec #112) 3300L
-
- 60” ID X 6’ sidewall OD
- Flat Bottom on m.s. stand- legs 22”
- 4’ sidewall IC- Cladding tacked only, 1” insulation
- 1 ½:” outlet to b.s
- 1 ½” Whirlpool b.s. 3” in
- 6” Top vent elbow
- 1 ½” CIP bevel seat
- Inside ladder rungs
- Top manway 12 ½” X 11” no seal
#2 Mash/Lauter Tun (Spec Mec #111) 2900L
- 60” DIA X 63” sidewall OD
- Slight cone bottom- top 2- ½” lids
- 3- Stainless steel legs 38° tall and bracing
- Sidewall I.C. tacked only 1” insulation
- 2 pcs. wedge wire floor
- 1” CIP b.s.
- 1 ½” drain b.s.
- Mano- 2 pcs
- Manway size ZOR 13” X 17” – alcove
#3 Brew Kettle ( Spec Mec # 113) 3200L
- 48” sidewall X 72” ID
- Cone top 12” bottom cone 4”
- On 3 legs and braces 36” tall
- 1” insulation – tack cladding
- 1 ½” CIP b.s. 1 1/2” drain bevel seat
- 18” manway complete with no seal
- Steam heat inside 3 RDS of 1 ½”: pipe coil
- 4” to 6” smaller then ID
- Internal collandria- connected to steam coil
- 1” pipe- collandria apprx. 16” DIA X 14” tall
- c/w 12 holes 2 ½” – 1: steam in and out
- inside all TIG no polish
- 11 ½” vent and cond. Ring
